The stationary EC payment terminal Desk 5000 features a high-resolution touch display and a clear, intuitive user interface, making everyday card payments easier. In addition to all common EC and credit cards, the Desk 5000 is also compatible with bonus and loyalty cards as well as NFC-enabled smartphones. Learn more here about the advantages of the Desk 5000.
LPPAY Desk 5000
The Desk 5000 is a stationary EC payment terminal with a high-resolution touch display and a user-friendly menu interface—ideal for fast and smooth payment transactions. In addition to EC and credit cards, the device also processes bonus and loyalty cards as well as contactless payments via NFC smartphones.
- LAN & Wi-Fi module – suitable for use at different locations
- Hybrid card reader – for chip and magnetic stripe cards
- Suitable for use in retail stores, hotels, or pharmacies
Advantages and Functions
- Keyboard: 16 keys | backlit | tactile
- Printer: graphic-capable thermal printer | Speed: 30 lines/sec | Paper roll: Ø 40, 58 mm width
Technical Data
Dimensions
- Dimensions (L x W x H): 82 x 68 x 187 mm
- Weight: 340 g (without paper roll)
Processor / Memory
- Telium TETRA, Cortex A5 64 Bit
- 512 MB RAM | 512 MB Flash | µSD slot
Display
- 3.5” TFT color display | 480 x 320 pixels
- Video accelerator with H264 codec
- Touchscreen
POS Integration
- Interface protocol: ZVT O.P.I.
- POS connection with Andro Software via Ethernet + WLAN + USB + Com
Security Features
Certification:
- DK TA 7.2 / DC-POS 3.0
- EMV Level 1 and 2
- PCI PTS 5.x
Rent the Desk 5000 from LPPAY

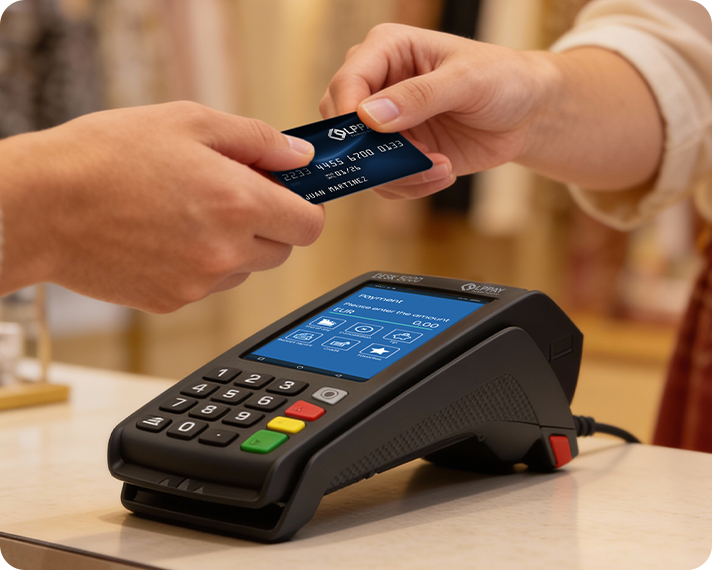

Functions and Design of the Desk 5000
The stationary EC card reader Desk 5000 is connected to the cash register via USB or RS232. It also features a graphics-capable thermal printer. Thanks to the Cortex-A5 processor and integrated Telium technology, the Desk 5000 delivers high performance with fast transaction times. In addition, the terminal can be expanded via the OAI (Open Application Interface) concept to support bonus and loyalty systems such as customer cards. The Desk 5000 also stands out with its ergonomic design. The contactless reader positioned above the display makes it easier to use NFC-enabled smartphones.
The high-resolution touch display and the clearly arranged keypad further enhance the user-friendliness of this stationary terminal.
Which payment methods are supported by the Desk 5000?
With the Ingenico Desk 5000, you benefit from full card flexibility: the stationary EC terminal processes all common debit and credit cards, including contactless payments via Near Field Communication (NFC) and EMV chip.
Communication takes place either via Ethernet or Wi-Fi.
Maximum Security with the Desk 5000
The Desk 5000 is certified according to PCI PTS 4.x and meets all current security requirements of the German Banking Industry. The latest security architectures in accordance with PCI 4 enable secure processing of card payments.
