LPPAY BASE NEXT
Flexible placement in your business premises – thanks to the WLAN module and the one-cable solution, the BaseNext can be easily and easily integrated into any checkout station. You only need a power socket. Placing the contactless reader at the top of the terminal gives the cardholder a clear view of the amount and status of the transaction. With the integrated WLAN module and the new generation of processors, the BaseNext combines fast transaction processing with a flexible selection of the cash register location, independent of fixed telecommunications installations. The large color display with high-resolution touchscreen, in conjunction with the new positioning of the contactless reader, ensures convenient and convenient processing of card payments. Gain time for your customers.
Advantages and Functions
- Keyboard: 10 numeric keys, 5 additional function keys, backlit keyboard
- Display: 4″ color display, 480 x 800 pixels (WVGA), capacitive touchscreen
Technical Data
Dimensions
- Dimensions (L x W x H): 181 x 83 x 72 mm
- Weight: 410 g
Processor / Memory
- Cortex-A9 processor with 1000 MHz
- 512 MB Flash and 512 MB SDRAM, expandable via Micro SD up to 82 GB
Power Supply
External power supply
- Input: 100–240 VAC, 50/60 Hz
- Output: 9V / 1.0 A
Full Card Flexibility
Communication / Interfaces:
- WiFi (IEEE 802.11 a/b/g/n/ac up to 433.3 Mbps)
- Analog
- LAN
- RS232
- USB (Host + OTG)
- BT
Safety as Standard
Certification:
- DK TA 7.2 / DC-POS 3.0
- EMV Level 1 and 2
- PCI PTS 5.x

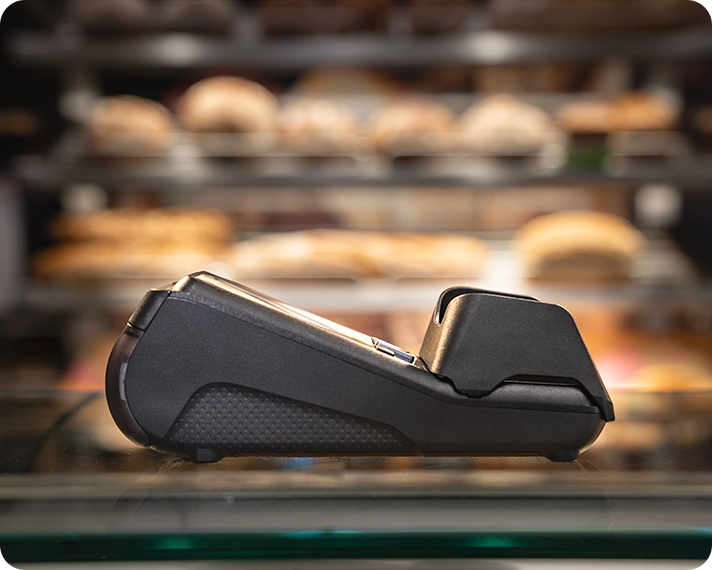

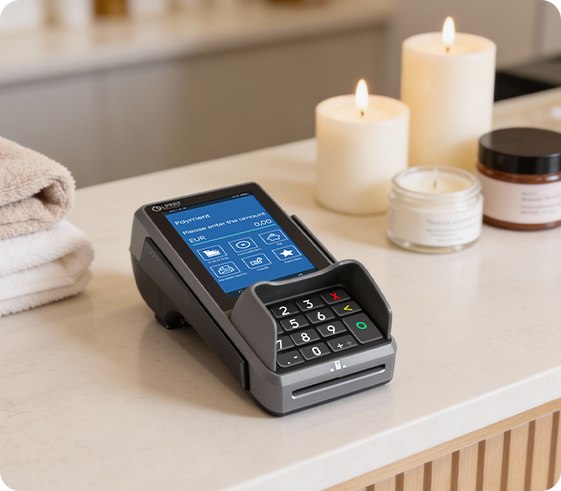

BaseNext

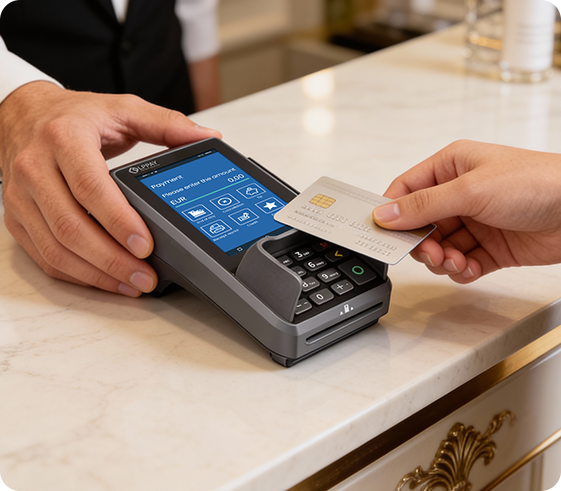

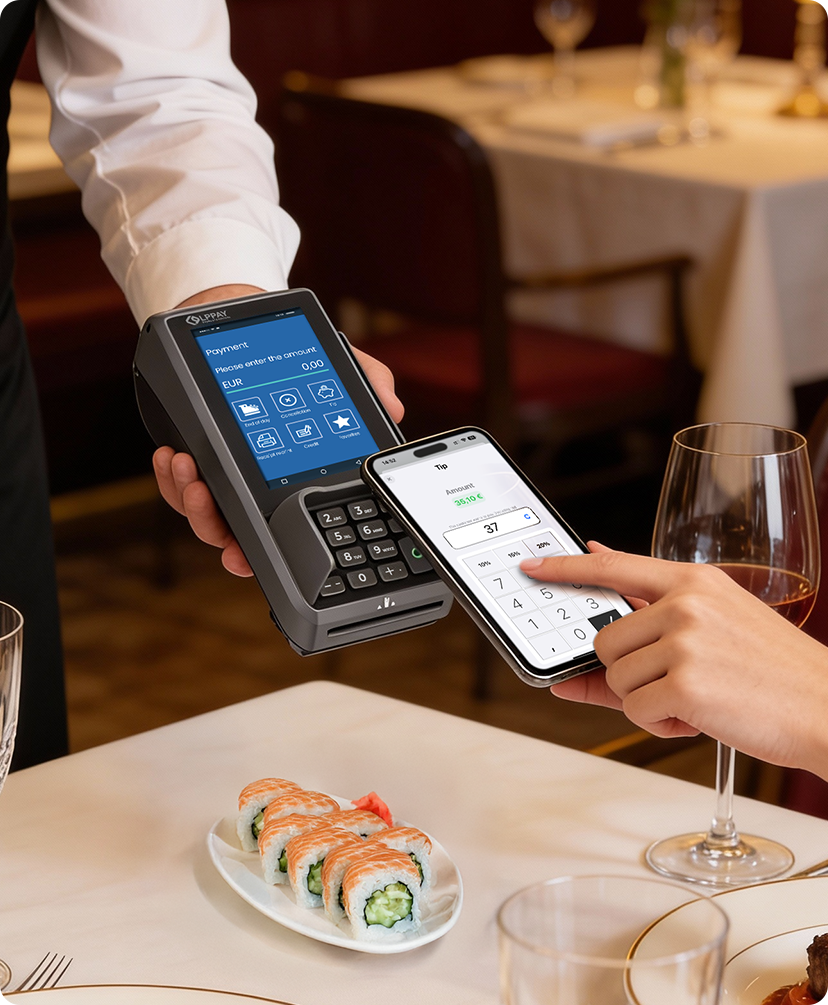

The stationary Base Next terminal allows your customers to make uncomplicated and quick card payments. The high-resolution color display with touchscreen ensures high user-friendliness and, thanks to near-field communication (NFC), contactless payments via smartphone are also possible. Find out everything about the functions and advantages of the Base Next here.
Base Next: Cash register connection and communication
The Base Next is designed as a stationary terminal for use at a fixed point of sale. Thanks to its small dimensions, the card reader takes up very little space at the cash register. The Base Next is connected to the cash register simply and easily using the one-cable solution – you only need a power socket.

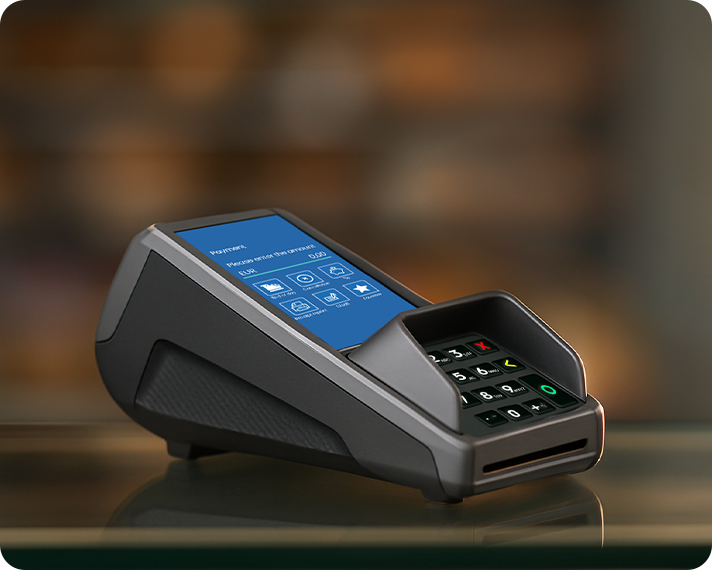

Base Next Terminal: Design & Usability
The Base Next is equipped with a 4-inch color display with touch screen . The contactless breader on the Base Next is located at the top of the terminal. This means that when making contactless payments, the customer still has a clear view of the display, which shows the amount and status of the transaction.
The Base Next communicates either via WLAN or LAN.
Accept the most commonly used cards and payment methods.
Maximum safety with the Base Next
The stationary card reader has the latest security architecture in accordance with PCI 4 . The Base Next also has a PIN pad with privacy protection so that your customers can enter their PIN in peace without having to worry about their number being spied on.
